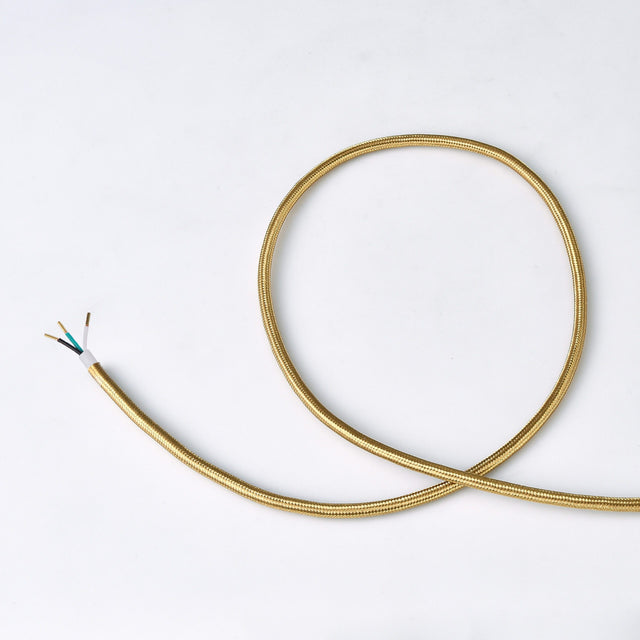

Brass Fabric Cord - Cloth Covered Electrical Wire
Making your very own DIY lamp or reviving an old one? Want to bring your custom lighting project to life? Complete your project with our soft and flexible fabric cord for a sophisticated eye-catching result with a industrial and vintage feel.
Our SVT-3 wire features 3 conductor wires (hot, neutral and ground) with double PVC insulation and finished with a high quality braided rayon cloth cover. To use as a 2-conductor cord, clip the (green) wire and leave it unused. Suitable for used in portable lamps, pendant lighting, floor lamps, clocks, radios, fans and other household appliances. Click here to see more colors.
SPECIFICATIONS:
- Color: Brass
- Length Per Roll: 2.44m (8ft) or 4.88m (16ft)
- Cord Type: SVT-3 Flexible Electrical Wire (Pulley Cord)
- Conductor Material: Bare Copper
- No. of Conductors: 3 (Can be used as 2)
- Overall Diameter: 6.35mm (0.25in)
- Individual Wire Diameter: 3.18mm (0.125in)
- Copper Thread Thickness: Approx. 1.3mm
- Gauge: 18 Gauge
- Insulation: PVC Insulation
- Cloth Cover: Rayon
- Max Temperature: 105°C
- Max Voltage: 300V
- Usage: Indoor Use Only
IMPORTANT NOTES:
To protect the integrity and safety of the cord, RETURNS & EXCHANGES ARE NOT ACCEPTED. Actual color may appear slightly difference from what you see on your screen. Our conductor wire is an UL recognized component except the braided rayon cloth covering is for aesthetic purpose only.
